Ninhydrin is a powerful chemical reagent widely used in analytical chemistry and forensic science. It is an organic compound with the formula C₉H₆O₄, known for its ability to react with free amino groups in amino acids, peptides, and proteins, producing a characteristic deep blue or purple color known as Ruhemann’s purple. This chromogenic reaction makes ninhydrin an essential tool for detecting amino acids on chromatograms and for revealing fingerprints on porous surfaces.

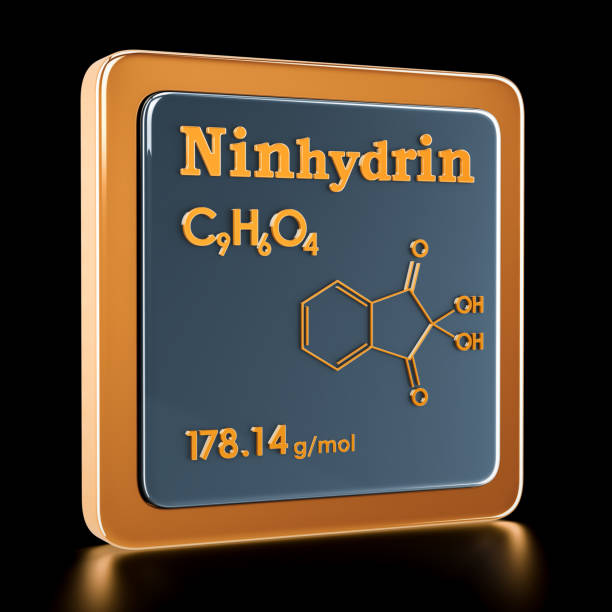

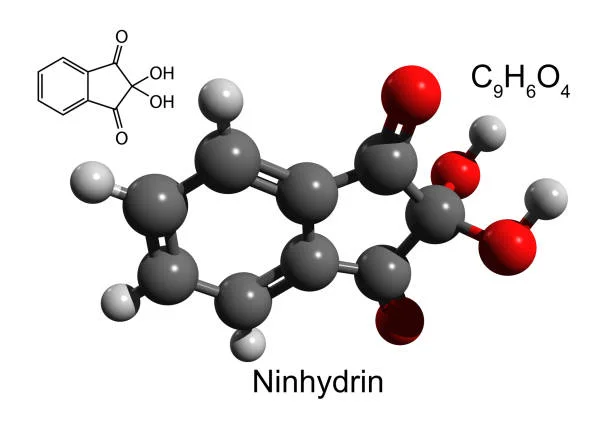

Chemical Structure and Properties of Ninhydrin
It is chemically identified as 2,2-dihydroxyindane-1,3-dione and is classified among the hydrindantin derivatives. The compound typically appears as a white to pale yellow crystalline powder and is soluble in solvents such as ethanol and acetone.
Key physical and chemical properties:
- Molecular formula: C₉H₆O₄
- Molecular weight: 178.14 g/mol
- Melting point: 250–252°C
- Solubility: Soluble in water, ethanol, and acetone
- Reactivity: Reacts readily with amino acids and ammonia
Mechanism of Reaction with Amino Acids
When it reacts with a compound containing a free amine group, such as an amino acid, a complex chemical transformation occurs. The reaction involves oxidative deamination, producing CO₂, an aldehyde, and ammonia. The ammonia then reacts with excess ninhydrin to form Ruhemann’s purple, which is visible to the naked eye.
Simplified reaction pathway:
- It reacts with the α-amino acid, forming an imine.
- The imine is hydrolyzed to release an aldehyde and ammonia.
- A second molecule of ninhydrin reacts with the released ammonia.
- The product is Ruhemann’s purple, a deeply colored chromophore.
Applications of Ninhydrin
1. Forensic Science: Fingerprint Development
It is a staple reagent in forensic science for the visualization of latent fingerprints on porous materials such as paper, cardboard, and wood. The amino acids present in sweat residues left by fingers react with ninhydrin to form the characteristic purple color, thereby revealing fingerprint ridges with high contrast.
Advantages in forensic use:
- High sensitivity to trace amino acids
- Simple application through spraying or dipping
- Non-destructive to most documents
2. Chromatographic Detection
In paper chromatography and thin-layer chromatography (TLC), it is utilized to detect amino acids after separation. The developed chromatogram is sprayed with a ninhydrin solution and gently heated to visualize purple spots, indicating the presence of amino acids.
Why is ninhydrin ideal?
- Detects even microgram levels of amino acids
- Produces permanent, non-diffusing color
- Useful in both qualitative and semi-quantitative analyses
3. Protein and Peptide Analysis
It plays a role in biochemical and clinical laboratories for determining the presence of amino groups in proteins and peptides. It is a standard reagent in the ninhydrin test, which assesses protein hydrolysis efficiency and the extent of peptide synthesis.
4. Food and Pharmaceutical Industry
In quality control labs, ninhydrin is employed to measure amino acid content in protein-rich food products, nutritional supplements, and pharmaceutical formulations. It ensures that composition standards and purity are met.
Preparation of Ninhydrin Reagent
This reagent can be prepared by dissolving 0.2 g of ninhydrin in 100 mL of ethanol or acetone. For enhanced reactivity, buffer solutions or solvents containing mild acids like acetic acid can be added. The solution is typically stored in amber bottles to prevent degradation by light.

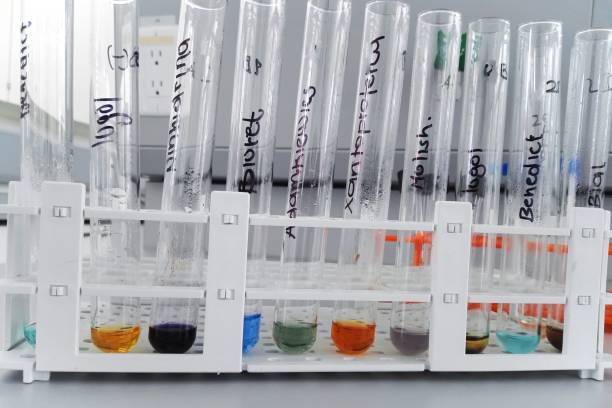

How to Perform the Ninhydrin Test
Materials Needed:
- Ninhydrin reagent
- Amino acid or protein sample
- Test tubes or chromatographic medium
- Heat source (water bath or heat gun)
Procedure:
- Apply the sample to a surface or dissolve it in water.
- Add or spray the ninhydrin reagent onto the sample.
- Heat the sample at 80–100°C for 5–10 minutes.
- Observe the development of a blue-purple coloration.
Interpretation:
- Purple color: Presence of primary amino acids (e.g., glycine, alanine)
- Yellow color: Secondary amines (e.g., proline)
Safety and Handling of Ninhydrin
Though widely used, it is a hazardous chemical and should be handled with caution.
Precautions:
- Always use protective gloves, a lab coat, and safety goggles when handling the substance.
- Avoid inhalation of vapors or dust
- Use under a fume hood when preparing large volumes
- Store in a cool, dry, dark place
First aid:
- In case of skin contact, wash with soap and water
- In case of inhalation, move to an area with fresh air and consult a medical professional.
- In case of ingestion, contact poison control immediately
Alternatives and Advancements
Though ninhydrin remains the gold standard, several advanced reagents have been developed for improved fingerprint visibility or sensitivity:
- 1,2-Indanedione: Fluorescent under green laser light
- DFO (1,8-Diazafluoren-9-one): Enhances detection under UV
- Fluorescamine: Highly sensitive, used in HPLC applications
These alternatives are preferred in high-sensitivity environments like military or intelligence laboratories, where trace detection is crucial.
Limitations
- Not effective on non-porous surfaces (e.g., glass, plastic)
- Does not differentiate between individual amino acids unless chromatography is employed
- May degrade under strong light or heat if not stored properly
Future Perspectives
As research into amino acid analysis and forensic visualization advances, ninhydrin continues to be a benchmark reagent. However, ongoing innovations are aiming at higher sensitivity, lower toxicity, and better compatibility with modern detection systems like mass spectrometry and automated imaging.
