Fractional distillation is a vital process widely used in both laboratory and industrial settings. It plays a significant role in the separation and purification of chemical substances based on their boiling points. From crude oil refining to alcohol purification, fractional distillation stands as a cornerstone in chemical engineering and various industrial applications.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.

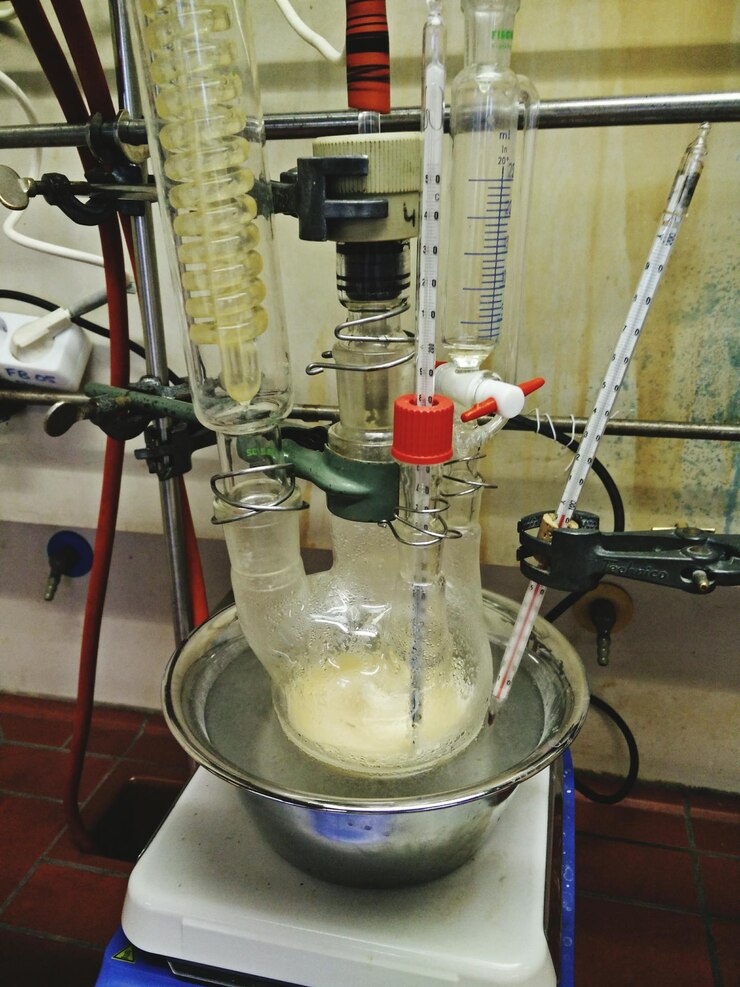

Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
- Distillation flask: Contains the liquid mixture.
- Heat source: Provides uniform heating.
- Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
- Thermometer: Monitors vapor temperature.
- Condenser: Cools the vapors into a liquid form.
- Receiving flask: Collects the distillate.
- Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers, often tens of meters high, are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
- Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
- Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
- Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are reheated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
- Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
- Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
- Repetition: The process continues until all fractions are collected.

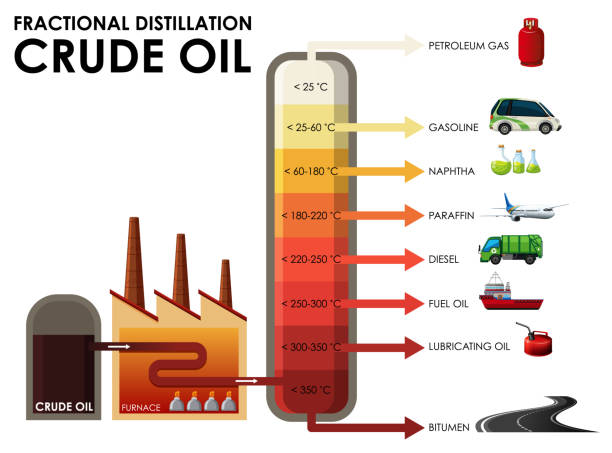

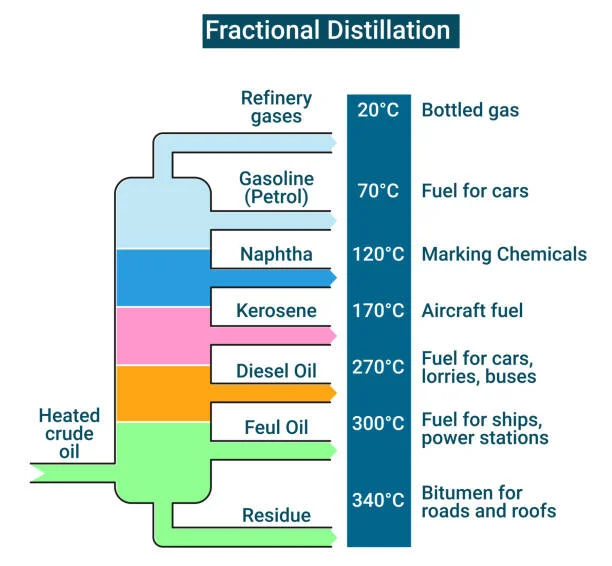

Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons, and fractional distillation is used to separate it into useful fractions:
- Refinery gas (C1–C4): Used as fuel gas.
- Petrol (C5–C10): For internal combustion engines.
- Naphtha: Feedstock for chemicals.
- Kerosene (C10–C16): Jet fuel and heating.
- Diesel (C14–C20): Diesel engines.
- Lubricating oil (C20–C50): Motor oils, greases.
- Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
Features of an Efficient Fractionating Column
- Packed Column: In laboratory settings, the column is packed with glass beads or steel wool to increase surface area.
- Bubble Cap Trays: In industrial towers, bubble cap trays promote contact between rising vapors and descending liquids.
- Temperature Gradient: Maintained from bottom (hot) to top (cool) to facilitate the separation.
- Reflux Ratio: Controlling the amount of condensed vapor returned to the column improves purity.
Applications of Fractional Distillation
1. Petroleum Refining: One of the main applications is in processing crude oil to separate it into fuels and valuable petrochemical products.
2. Alcohol Industry: Used to increase the ethanol content by removing water, producing high-purity alcohol.
3. Chemical Manufacturing: Essential for producing and purifying organic solvents and chemical reagents.
4. Air Separation: Used in the cryogenic distillation of liquid air to obtain nitrogen, oxygen, and argon.
5. Perfume and Flavor Industry: Fractional distillation helps isolate volatile components for use in fragrances and flavorings.
6. Pharmaceutical Industry: Used to purify complex chemical mixtures and active pharmaceutical ingredients.
Fractional Distillation vs. Simple Distillation
| Feature | Fractional Distillation | Simple Distillation |
|---|---|---|
| Boiling Point Difference | Small (<25°C) | Large (>25°C) |
| Efficiency | High (multiple vaporizations) | Low |
| Apparatus | Complex (fractionating column) | Simple |
| Applications | Industrial, precise lab work | Basic separation |
| Purity | Higher | Lower |
Factors Affecting Fractional Distillation Efficiency
- Boiling Point Difference: Greater differences lead to easier separation.
- Column Design: More surface area leads to better separation.
- Reflux Ratio: Higher reflux results in purer distillates.
- Rate of Heating: Slow, controlled heating enhances separation.
- Pressure Conditions: Lowering pressure can aid in separating heat-sensitive compounds.
Common Challenges and Solutions
- Bumping of Liquid: Prevented by adding anti-bumping granules.
- Incomplete Separation: Solved by optimizing the column height and reflux ratio.
- Heat Losses: Minimized by insulating the apparatus.
- Column Flooding: Avoided by controlling vapor flow rate.
Conclusion
Fractional distillation is an indispensable technique that allows for the precise separation of complex mixtures based on boiling points. Its utility spans industries from petroleum refining to pharmaceuticals, making it a fundamental operation in both research and manufacturing.
By mastering the science and methodology behind fractional distillation, we unlock the potential for high-purity products and efficient chemical processing. As industrial processes evolve, the demand for advanced distillation technologies continues to grow, highlighting the enduring relevance of this timeless technique.
What is called fractional distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.
Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
What is fractional distillation Grade 10th IGCSE?
Fractional distillation is a vital process widely used in both laboratory and industrial settings. It plays a significant role in the separation and purification of chemical substances based on their boiling points. From crude oil refining to alcohol purification, fractional distillation stands as a cornerstone in chemical engineering and various industrial applications.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.
Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
Features of an Efficient Fractionating Column
Packed Column: In laboratory settings, the column is packed with glass beads or steel wool to increase surface area.
Bubble Cap Trays: In industrial towers, bubble cap trays promote contact between rising vapors and descending liquids.
Temperature Gradient: Maintained from bottom (hot) to top (cool) to facilitate the separation.
Reflux Ratio: Controlling the amount of condensed vapor returned to the column improves purity.
Applications of Fractional Distillation
1. Petroleum Refining: One of the main applications is in processing crude oil to separate it into fuels and valuable petrochemical products.
2. Alcohol Industry: Used to increase the ethanol content by removing water, producing high-purity alcohol.
3. Chemical Manufacturing: Essential for producing and purifying organic solvents and chemical reagents.
4. Air Separation: Used in the cryogenic distillation of liquid air to obtain nitrogen, oxygen, and argon.
5. Perfume and Flavor Industry: Fractional distillation helps isolate volatile components for use in fragrances and flavorings.
6. Pharmaceutical Industry: Used to purify complex chemical mixtures and active pharmaceutical ingredients.
Fractional Distillation vs. Simple Distillation
Factors Affecting Fractional Distillation Efficiency
Boiling Point Difference: Greater differences lead to easier separation.
Column Design: More surface area leads to better separation.
Reflux Ratio: Higher reflux results in purer distillates.
Rate of Heating: Slow, controlled heating enhances separation.
Pressure Conditions: Lowering pressure can aid in separating heat-sensitive compounds.
Common Challenges and Solutions
Bumping of Liquid: Prevented by adding anti-bumping granules.
Incomplete Separation: Solved by optimizing the column height and reflux ratio.
Heat Losses: Minimized by insulating the apparatus.
Column Flooding: Avoided by controlling vapor flow rate.
Conclusion
Fractional distillation is an indispensable technique that allows for the precise separation of complex mixtures based on boiling points. Its utility spans industries from petroleum refining to pharmaceuticals, making it a fundamental operation in both research and manufacturing.
By mastering the science and methodology behind fractional distillation, we unlock the potential for high-purity products and efficient chemical processing. As industrial processes evolve, the demand for advanced distillation technologies continues to grow, highlighting the enduring relevance of this timeless technique.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
Features of an Efficient Fractionating Column
Packed Column: In laboratory settings, the column is packed with glass beads or steel wool to increase surface area.
Bubble Cap Trays: In industrial towers, bubble cap trays promote contact between rising vapors and descending liquids.
Temperature Gradient: Maintained from bottom (hot) to top (cool) to facilitate the separation.
Reflux Ratio: Controlling the amount of condensed vapor returned to the column improves purity.
Applications of Fractional Distillation
1. Petroleum Refining: One of the main applications is in processing crude oil to separate it into fuels and valuable petrochemical products.
2. Alcohol Industry: Used to increase the ethanol content by removing water, producing high-purity alcohol.
3. Chemical Manufacturing: Essential for producing and purifying organic solvents and chemical reagents.
4. Air Separation: Used in the cryogenic distillation of liquid air to obtain nitrogen, oxygen, and argon.
5. Perfume and Flavor Industry: Fractional distillation helps isolate volatile components for use in fragrances and flavorings.
6. Pharmaceutical Industry: Used to purify complex chemical mixtures and active pharmaceutical ingredients.
Fractional Distillation vs. Simple Distillation
| Feature | Fractional Distillation | Simple Distillation |
|---|---|---|
| Boiling Point Difference | Small (<25°C) | Large (>25°C) |
| Efficiency | High (multiple vaporizations) | Low |
| Apparatus | Complex (fractionating column) | Simple |
| Applications | Industrial, precise lab work | Basic separation |
| Purity | Higher | Lower |
Boiling Point Difference: Greater differences lead to easier separation.
Column Design: More surface area leads to better separation.
Reflux Ratio: Higher reflux results in purer distillates.
Rate of Heating: Slow, controlled heating enhances separation.
Pressure Conditions: Lowering pressure can aid in separating heat-sensitive compounds.
Common Challenges and Solutions
Bumping of Liquid: Prevented by adding anti-bumping granules.
Incomplete Separation: Solved by optimizing the column height and reflux ratio.
Heat Losses: Minimized by insulating the apparatus.
Column Flooding: Avoided by controlling vapor flow rate.
Conclusion
Fractional distillation is an indispensable technique that allows for the precise separation of complex mixtures based on boiling points. Its utility spans industries from petroleum refining to pharmaceuticals, making it a fundamental operation in both research and manufacturing.
By mastering the science and methodology behind fractional distillation, we unlock the potential for high-purity products and efficient chemical processing. As industrial processes evolve, the demand for advanced distillation technologies continues to grow, highlighting the enduring relevance of this timeless technique.
What is fractional distillation class 11th notes?
Fractional distillation is a vital process widely used in both laboratory and industrial settings. It plays a significant role in the separation and purification of chemical substances based on their boiling points. From crude oil refining to alcohol purification, fractional distillation stands as a cornerstone in chemical engineering and various industrial applications.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.
Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.

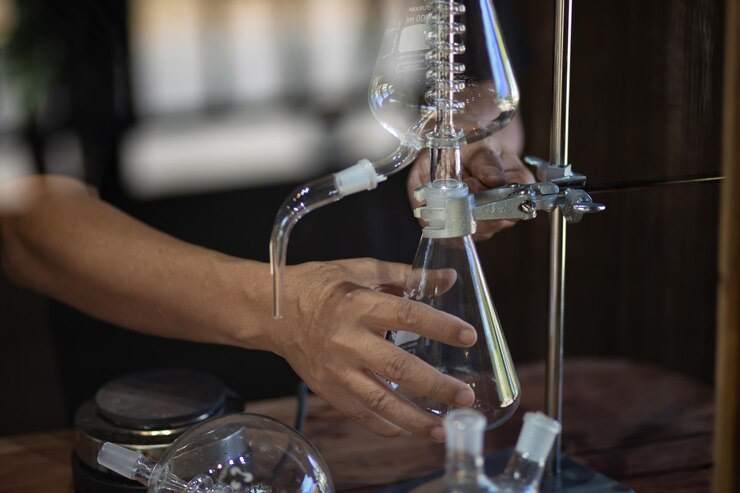

Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
What is the difference between fractional distillation and simple distillation?
Fractional Distillation vs. Simple Distillation
| Feature | Fractional Distillation | Simple Distillation |
|---|---|---|
| Boiling Point Difference | Small (<25°C) | Large (>25°C) |
| Efficiency | High (multiple vaporizations) | Low |
| Apparatus | Complex (fractionating column) | Simple |
| Applications | Industrial, precise lab work | Basic separation |
| Purity | Higher | Lower |
What is fractional distillation class 9th?
Fractional distillation is a vital process widely used in both laboratory and industrial settings. It plays a significant role in the separation and purification of chemical substances based on their boiling points. From crude oil refining to alcohol purification, fractional distillation stands as a cornerstone in chemical engineering and various industrial applications.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.
Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
Features of an Efficient Fractionating Column
Packed Column: In laboratory settings, the column is packed with glass beads or steel wool to increase surface area.
Bubble Cap Trays: In industrial towers, bubble cap trays promote contact between rising vapors and descending liquids.
Temperature Gradient: Maintained from bottom (hot) to top (cool) to facilitate the separation.
Reflux Ratio: Controlling the amount of condensed vapor returned to the column improves purity.
Applications of Fractional Distillation
1. Petroleum Refining: One of the main applications is in processing crude oil to separate it into fuels and valuable petrochemical products.
2. Alcohol Industry: Used to increase the ethanol content by removing water, producing high-purity alcohol.
3. Chemical Manufacturing: Essential for producing and purifying organic solvents and chemical reagents.
4. Air Separation: Used in the cryogenic distillation of liquid air to obtain nitrogen, oxygen, and argon.
5. Perfume and Flavor Industry: Fractional distillation helps isolate volatile components for use in fragrances and flavorings.
6. Pharmaceutical Industry: Used to purify complex chemical mixtures and active pharmaceutical ingredients.
Fractional Distillation vs. Simple Distillation
Factors Affecting Fractional Distillation Efficiency
Boiling Point Difference: Greater differences lead to easier separation.
Column Design: More surface area leads to better separation.
Reflux Ratio: Higher reflux results in purer distillates.
Rate of Heating: Slow, controlled heating enhances separation.
Pressure Conditions: Lowering pressure can aid in separating heat-sensitive compounds.
Common Challenges and Solutions
Bumping of Liquid: Prevented by adding anti-bumping granules.
Incomplete Separation: Solved by optimizing the column height and reflux ratio.
Heat Losses: Minimized by insulating the apparatus.
Column Flooding: Avoided by controlling vapor flow rate.
Conclusion
Fractional distillation is an indispensable technique that allows for the precise separation of complex mixtures based on boiling points. Its utility spans industries from petroleum refining to pharmaceuticals, making it a fundamental operation in both research and manufacturing.
By mastering the science and methodology behind fractional distillation, we unlock the potential for high-purity products and efficient chemical processing. As industrial processes evolve, the demand for advanced distillation technologies continues to grow, highlighting the enduring relevance of this timeless technique.
What is Fractional Distillation?
Fractional distillation separates a mixture of two or more miscible liquids based on their differing boiling points. This method operates on the principle that the liquid with the lowest boiling point vaporizes first when the mixture is heated. The resulting vapors are then cooled and condensed to retrieve the purified liquid. This process is repeated for the remaining components, following the order of their boiling points.
Fractional distillation vector illustration. Labeled educational technology process scheme. Physics method to separate the mixture of fractions and liquid with vapor and fractionating column equipment.Unlike simple distillation, which works well only when the boiling points of components differ by at least 25°C, fractional distillation is capable of separating substances with much smaller differences in boiling points, making it a more accurate and flexible method.
Principle of Fractional Distillation
The fundamental principle behind fractional distillation lies in vapor-liquid equilibrium. When a liquid mixture is heated, each component contributes to the total vapor pressure in proportion to its mole fraction and vapor pressure at that temperature. The mixture boils when the total vapor pressure equals the atmospheric pressure.
As vapors rise through a fractionating column, they undergo multiple condensation and vaporization cycles, becoming progressively enriched in the lower-boiling component. This repeated enrichment allows for the effective separation of components.
Apparatus Used in Fractional Distillation
A typical laboratory setup for fractional distillation includes:
Distillation flask: Contains the liquid mixture.
Heat source: Provides uniform heating.
Fractionating column: The core part of the apparatus is filled with glass beads or plates to increase surface area.
Thermometer: Monitors vapor temperature.
Condenser: Cools the vapors into liquid form.
Receiving flask: Collects the distillate.
Adapter: Connects various components and directs the distillate into the receiver.
In industrial settings, fractionating towers often tens of meters high are used to distill large volumes, especially in petroleum refineries.
Steps in the Fractional Distillation Process
Preparation: The liquid mixture is added to the distillation flask and assembled with the fractionating column and condenser.
Heating: The mixture is slowly heated, and as the temperature increases, the component with the lowest boiling point begins to evaporate first.
Fractionating Column Action: As vapors rise, they cool slightly and condense on the surface of the column. These condensed liquids are re-heated by rising vapors, causing re-vaporization. This creates a reflux, enriching the vapor in the more volatile component.
Condensation: Vapors pass through the condenser, where they are cooled and converted back into liquid.
Collection: The condensed liquid is collected in separate flasks as different components, called fractions, are distilled at different temperatures.
Repetition: The process continues until all fractions are collected.
Fractional Distillation of Crude Oil
One of the most important industrial applications of fractional distillation is in the petroleum industry. Crude oil is a complex mixture of hydrocarbons and fractional distillation is used to separate it into useful fractions:
Refinery gas (C1–C4): Used as fuel gas.
Petrol (C5–C10): For internal combustion engines.
Naphtha: Feedstock for chemicals.
Kerosene (C10–C16): Jet fuel and heating.
Diesel (C14–C20): Diesel engines.
Lubricating oil (C20–C50): Motor oils, greases.
Fuel oil and bitumen (C50+): Industrial fuel, road surfacing.
Each fraction is collected at different levels in the fractionating column, where temperature gradients allow for efficient separation.
Features of an Efficient Fractionating Column
Packed Column: In laboratory settings, the column is packed with glass beads or steel wool to increase surface area.
Bubble Cap Trays: In industrial towers, bubble cap trays promote contact between rising vapors and descending liquids.
Temperature Gradient: Maintained from bottom (hot) to top (cool) to facilitate the separation.
Reflux Ratio: Controlling the amount of condensed vapor returned to the column improves purity.
Applications of Fractional Distillation
1. Petroleum Refining: One of the main applications is in processing crude oil to separate it into fuels and valuable petrochemical products.
2. Alcohol Industry: Used to increase the ethanol content by removing water, producing high-purity alcohol.
3. Chemical Manufacturing: Essential for producing and purifying organic solvents and chemical reagents.
4. Air Separation: Used in the cryogenic distillation of liquid air to obtain nitrogen, oxygen, and argon.
5. Perfume and Flavor Industry: Fractional distillation helps isolate volatile components for use in fragrances and flavorings.
6. Pharmaceutical Industry: Used to purify complex chemical mixtures and active pharmaceutical ingredients.
Fractional Distillation vs. Simple Distillation
| Feature | Fractional Distillation | Simple Distillation |
|---|---|---|
| Boiling Point Difference | Small (<25°C) | Large (>25°C) |
| Efficiency | High (multiple vaporizations) | Low |
| Apparatus | Complex (fractionating column) | Simple |
| Applications | Industrial, precise lab work | Basic separation |
| Purity | Higher | Lower |
Factors Affecting Fractional Distillation Efficiency
Boiling Point Difference: Greater differences lead to easier separation.
Column Design: More surface area leads to better separation.
Reflux Ratio: Higher reflux results in purer distillates.
Rate of Heating: Slow, controlled heating enhances separation.
Pressure Conditions: Lowering pressure can aid in separating heat-sensitive compounds.
Common Challenges and Solutions
Bumping of Liquid: Prevented by adding anti-bumping granules.
Incomplete Separation: Solved by optimizing the column height and reflux ratio.
Heat Losses: Minimized by insulating the apparatus.
Column Flooding: Avoided by controlling vapor flow rate.
Conclusion
Fractional distillation is an indispensable technique that allows for the precise separation of complex mixtures based on boiling points. Its utility spans industries from petroleum refining to pharmaceuticals, making it a fundamental operation in both research and manufacturing.
By mastering the science and methodology behind fractional distillation, we unlock the potential for high-purity products and efficient chemical processing. As industrial processes evolve, the demand for advanced distillation technologies continues to grow, highlighting the enduring relevance of this timeless technique.
