Electrochemical cell are essential to modern technology, helping convert energy to power everything from small batteries to large industrial systems. Simply put, these cells turn chemical energy into electrical energy or the other way around, using redox reactions to make it happen.
In this comprehensive guide, we will go through the types, components, working principles, and real-world applications of electrochemical cell.
Types of Electrochemical Cell
Electrochemical cells are broadly classified into two categories:

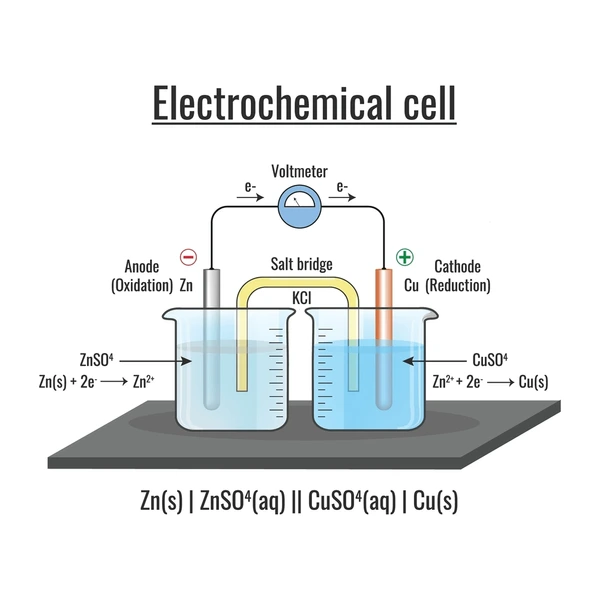

1. Galvanic (Voltaic) Cell
A galvanic cell generates electrical energy from spontaneous redox reactions. These cells are the foundation of batteries and power storage devices. The most well-known example is the Daniell cell, which consists of zinc and copper electrodes.
Key Components of a Galvanic Cell:
- Anode (Negative Electrode): Site of oxidation where electrons are lost.
- Cathode (Positive Electrode): Site of reduction where electrons are gained.
- Electrolyte: An ion-conducting medium that facilitates charge transfer.
- Salt Bridge: Maintains charge neutrality by allowing ion exchange between half-cells.
Working Principle of a Galvanic Cell:
- Oxidation at the anode releases electrons: Zn(s) → Zn2+ + 2e
- The electrons then move through an external circuit, generating electricity that can be used to power devices.
- Reduction happens at the cathode: Cu2+ (aq) + 2e- = Cu(s).
- The salt bridge balances ion concentration, allowing the reaction to proceed.
2. Electrolytic Cell
Unlike galvanic cells, electrolytic cells require an external power source to drive non-spontaneous chemical reactions. They are widely used in electroplating, water electrolysis, and refining metals.
Key Components of an Electrolytic Cell:
- Anode (Positive Electrode): Oxidation occurs here.
- Cathode (Negative Electrode): Reduction takes place here.
- Electrolyte: A solution or molten compound that allows ion movement.
- External Power Source: Provides energy to drive the reaction.
Working Principle of an Electrolytic Cell:
- Electric current is applied, forcing electrons toward the cathode.
- Reduction occurs at the cathode, depositing metal or producing gas.
- Oxidation happens at the anode, releasing electrons.
Example: Electrolysis of water 2H₂O(l) → 2H₂(g) + O₂(g).
Differences Between Galvanic and Electrolytic Cells
| Feature | Galvanic Cell | Electrolytic Cell |
|---|---|---|
| Energy Source | Chemical reaction | External power source |
| Reaction Type | Spontaneous | Non-spontaneous |
| Electrode Charges | Anode (-), Cathode (+) | Anode (+), Cathode (-) |
| Purpose | Generate electricity | Drive chemical reactions |
| Example | Batteries | Electroplating |
Applications of Electrochemical Cell
Electrochemical cells have widespread applications in various industries:
1. Batteries and Power Storage
- Primary Batteries (Non-rechargeable): Alkaline batteries, button cells.
- Secondary Batteries (Rechargeable): Lithium-ion, lead-acid batteries are used in smartphones, laptops, and electric vehicles.
2. Corrosion Protection
- Cathodic protection prevents metal structures like pipelines and bridges from rusting.
3. Industrial Electrolysis
- Splitting water through electrolysis to generate hydrogen and oxygen gas.
- Aluminum extraction from bauxite using the Hall-Héroult process.

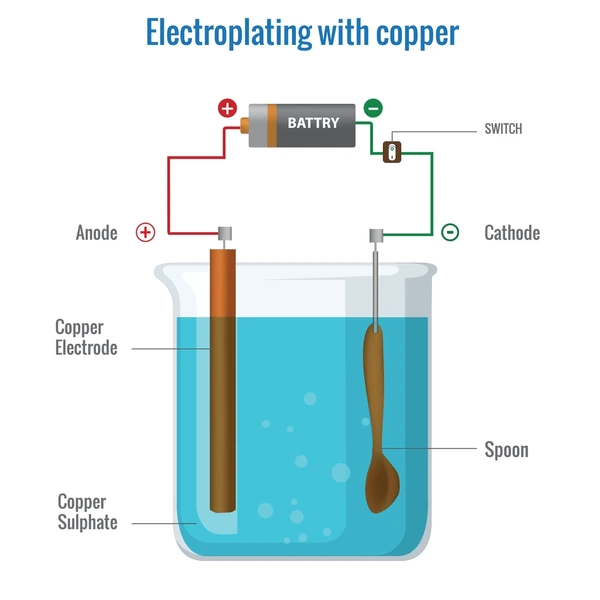

4. Electroplating and Metal Refining
- Coating metals with gold, silver, or nickel to enhance durability and appearance.
5. Sensors and Biomedical Devices
- Glucose sensors for diabetes monitoring.
- pH meters for water quality assessment.
Factors Affecting Electrochemical Cell Efficiency
Several factors influence the performance of an electrochemical cell:
1. Temperature
Higher temperatures can increase reaction rates but may also lead to side reactions, reducing efficiency.
2. Concentration of Electrolytes
Higher ion concentration enhances conductivity and cell performance.
3. Electrode Material
Conductive, corrosion-resistant materials like platinum and graphite improve cell longevity.
4. External Load
The resistance in an external circuit impacts the amount of energy extracted from the cell.
Conclusion
Electrochemical cells are essential in modern technology, providing sustainable energy solutions and enabling key industrial processes. Understanding their working principles, types, and applications helps in optimizing their performance and developing innovative solutions for future energy storage needs.
