Understanding density measurement is fundamental across a wide range of scientific, industrial, and engineering disciplines. Whether you’re in a laboratory, processing facility, or quality control environment, accurate density measurement is essential for product consistency, quality assurance, and compliance with international standards. In this guide, we explore every aspect of density, its definition, formulas, tools, types, and modern applications.

Introduction to Density

Density refers to the amount of mass contained in a given volume of a substance. It is a key physical property used to identify materials and assess their purity or concentration.

Formula of Density:

Density (ρ) = Mass (m) / Volume (V)
SI Unit: Kilogram per cubic meter (kg/m³)
Common Units: g/cm³, kg/L, lb/ft³

Why Is Density Measurement Important?

Density plays a critical role in:

• Material identification
• Quality control and assurance
• Purity testing of substances
• Monitoring concentrations in solutions
• Design and safety calculations in engineering

From crude oil in refineries to pharmaceuticals, and food production to aerospace materials, density data is vital.

Methods of Density Measurement

1. Gravimetric Method (Mass and Volume Method)

This is the most straightforward method of measuring density.

Steps:

• Weigh the substance using an analytical balance.
• Measure its volume using a graduated cylinder or volumetric flask.
• Apply the density formula.

Applications: Widely used in educational laboratories, chemistry experiments, and routine testing.

2. Pycnometer Method

A pycnometer is a specialized glass flask used to measure the density of liquids.

Procedure:

• Fill the pycnometer with the liquid.
• Weigh it when empty, filled with liquid, and filled with water.
• Use the difference in weights to calculate density.

Advantages:

• High accuracy.
• Ideal for small volumes.

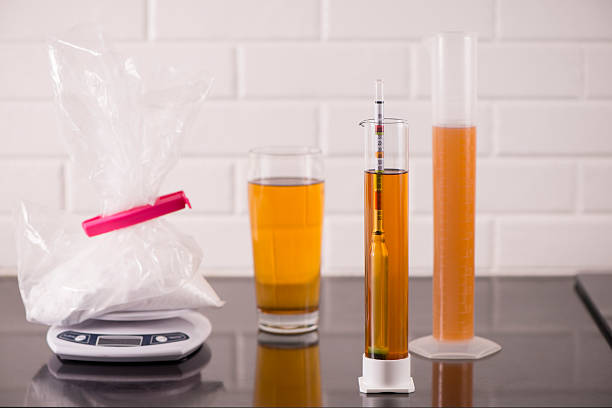

3. Hydrometer Method

A hydrometer is a floating instrument calibrated to measure the specific gravity of liquids.

How it works:

• The depth to which the hydrometer sinks indicates the liquid’s density.
• Used in beverages, petroleum products, and battery fluids.

Benefits:

• Simple and quick.
• Portable and cost-effective.

4. Digital Density Meters

Oscillating U-tube densitometers are modern instruments for fast, high-precision density measurement.

Features:

• Automated measurement
• Digital display
• Temperature compensation

Industries using digital meters:

• Pharmaceuticals
• Petrochemicals
• Cosmetics
• Food and Beverage

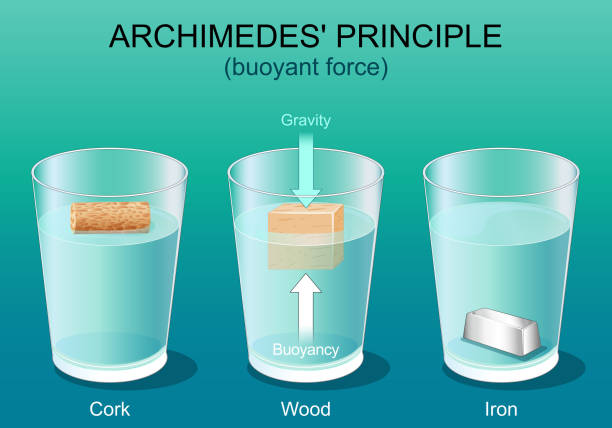

5. Archimedes’ Principle (Buoyancy Method)

This method is ideal for irregularly shaped solids.

How it works:

• Weigh the object in air and then in water.
• The reduction in an object’s apparent weight when submerged in water corresponds to the weight of the displaced fluid.
• Use this to calculate volume and then density.

Used for:

• Metals, plastics, ceramics, and gems

Types of Density

1. Bulk Density

Bulk density includes the volume of the particles and the space between them. It is commonly used in powders and granular materials like soil, cement, or grains.

2. True Density

This measures only the volume of the solid material itself, excluding voids. It requires helium pycnometry or liquid displacement.

3. Apparent Density

Apparent density considers the space occupied by particles but not the inter-particle voids. It is used in pharmaceutical powders and metallic powders.

Factors Affecting Density Measurement

1. Temperature

Density changes with temperature. Always calibrate or correct density readings based on temperature using ASTM D1250 or ISO 4267 charts.

2. Pressure

For gases and some liquids, pressure significantly affects density. High-pressure systems require pressurized measurement cells.

3. Purity

Impurities can skew density values. Purity levels should be verified beforehand.

4. Humidity

Hygroscopic materials absorb water, altering both mass and volume. Use desiccators to prevent moisture interference.

Instruments Used for Density Measurement

• Analytical Balance: Measures mass with high precision.
• Volumetric Glassware: Cylinders, flasks, and burettes for accurate volume.
• Pycnometers: For high-accuracy liquid density.
• Hydrometers: Ideal for quick, approximate readings.
• Digital Density Meters: Provide precise, rapid results with digital integration.

Industrial Applications of Density Measurement

1. Chemical Industry

• Reaction monitoring
• Quality control of solvents and reactants
• Product validation

2. Food and Beverage

• Alcohol content determination
• Sugar concentration (Brix)
• Milk fat testing

3. Oil and Gas

• API gravity measurement
• Fuel quality control
• Crude oil characterization

4. Pharmaceuticals

• Tablet density for dissolution rate
• Powder flow characteristics
• Consistency in formulations

5. Environmental Testing

• Water pollution studies
• Sediment analysis
• Airborne particulate measurement

Tips for Accurate Density Measurement

• Always calibrate instruments before use.
• Use clean, dry equipment to avoid contamination.
• Maintain constant temperature conditions.
• Remove air bubbles in liquid measurements.
• Record measurements at eye level to avoid parallax errors.
• Use triplicate readings to improve reliability.

Troubleshooting Density Measurement Errors

Calibration and Standards

International standards for density measurement include:

• ASTM D4052 – Digital Density Meter Method
• ISO 12185 – Petroleum products density measurement
• USP <841> – Pharmaceutical industry guidelines

Regular calibration using reference standards ensures reliability and traceability of results.

Conclusion

Mastering the art of density measurement ensures not only scientific accuracy but also boosts production quality, reduces waste, and ensures regulatory compliance. From basic lab experiments to high-end industrial processes, density remains one of the most fundamental yet powerful tools in science and engineering.
