A cover slip, also referred to as a coverslip or cover glass, is an essential element in microscopic observation used in laboratories, medical diagnostics, and research settings. Although it is small and appears simple in design, the cover slip is vital for improving image clarity, safeguarding specimens, and protecting delicate microscope lenses. This detailed guide offers an in-depth overview of cover slips, including their types, applications, handling procedures, and importance in scientific work.
Introduction to Cover Slip

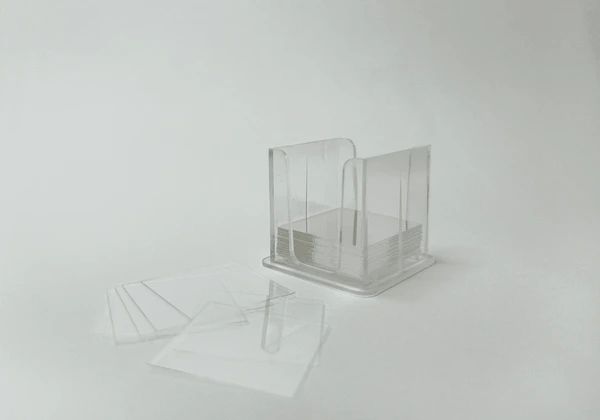

A cover slip is an ultra-thin, flat piece of transparent material, typically made from glass or plastic, that is placed over a specimen mounted on a microscope slide. The primary purpose of a cover slip is to flatten the specimen, protect it, and create an even surface for optimal light transmission during microscopic examination.
Standard cover slips are square or rectangular, with common dimensions ranging from 18 x 18 mm to 24 x 60 mm, and thicknesses varying based on microscope requirements.
Importance of Using Cover Slips
Cover slips are indispensable in microscopic work for several reasons:
- Enhanced Image Clarity: They create a uniform, flat surface that minimizes light refraction and distortion, leading to sharper, more detailed images.
- Specimen Protection: Cover slips shield the specimen from dust, drying out, or contamination during observation.
- Objective Lens Protection: By preventing direct contact between the specimen and the microscope’s objective lens, cover slips reduce the risk of damage to expensive optical components.
- Sample Stability: They help flatten specimens, ensuring consistent focus and preventing movement during examination.
Types of Cover Slips
Cover slips come in various types based on material, shape, and thickness to suit different laboratory applications:
1. Glass Cover Slips
The most widely used type, made from optically clear borosilicate or soda-lime glass, offers excellent transparency and scratch resistance. Suitable for high-resolution microscopy and professional laboratory use.
2. Plastic Cover Slips
Made from materials such as polycarbonate or acrylic, plastic cover slips are shatter-resistant and lightweight. Ideal for educational settings, fieldwork, or when working with fragile or valuable specimens.
3. Square Cover Slips
These are the most frequently used shapes, usually measuring around 18 x 18 mm, 22 x 22 mm, or similar dimensions. They are suitable for standard-sized microscope slides and small specimens.
4. Rectangular Cover Slips
Rectangular cover slips, such as 22 x 40 mm or 24 x 50 mm, provide greater coverage for larger specimens or extended smear samples like blood films.
5. Thickness Variations
Cover slips are classified by thickness, known as No. 1, No. 1.5, and No. 2:
- No. 1 (0.13 – 0.17 mm): Suitable for general use and basic observation.
- No. 1.5 (0.16 – 0.19 mm): The standard for high-magnification work, including oil immersion microscopy.
- No. 2 (0.19 – 0.23 mm): Used for thicker specimens or specialized applications.
Applications of Cover Slips in Laboratories
Cover slips play a vital role in various scientific and medical fields:
1. Biological Microscopy
In histology, microbiology, and cytology, cover slips are used to cover prepared slides containing cells, tissue sections, microorganisms, or smears for microscopic observation.

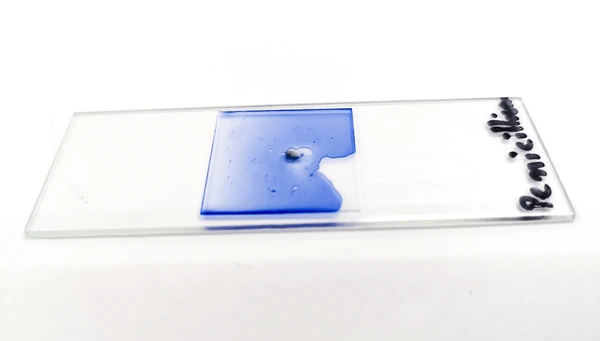

2. Wet Mount Preparation
For observing live or aquatic specimens, cover slips are used in wet mount preparations, ensuring the liquid sample remains contained and evenly distributed for clear viewing.
3. Stained Specimen Analysis
During staining procedures such as Gram staining or blood smear staining, cover slips protect the specimen and aid in producing crisp, high-contrast images.
4. Educational Demonstrations
Cover slips are essential tools in classrooms and teaching labs, providing students with clear, stable samples for observation and learning.
How to Properly Use a Cover Slip
Correct usage of cover slips is critical to obtaining accurate, high-quality microscopic images:
Step 1: Cleaning the Cover Slip
Ensure the cover slip is free from dust, smudges, or fingerprints. Clean with lens paper or distilled water if necessary.
Step 2: Preparing the Slide
Place the specimen at the center of the microscope slide, using a dropper or applicator if working with liquid samples.

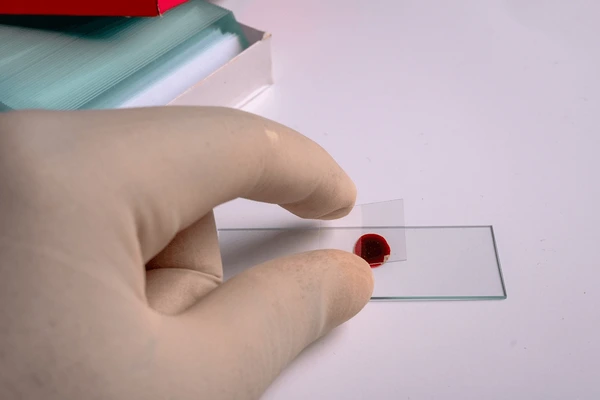

Step 3: Applying the Cover Slip
Carefully place the cover slip onto the specimen at a slight angle to prevent trapping air bubbles. Air bubbles can interfere with viewing and distort the image.
Step 4: Removing Excess Liquid
If excess liquid seeps out from under the cover slip, carefully blot the edges with absorbent paper.
Advantages of Using Cover Slips
The benefits of cover slips extend beyond simple protection:
- Improved Focus: Creates an even surface, facilitating precise focusing under high magnification.
- Reduced Specimen Movement: Keeps samples in place during examination.
- Extended Sample Longevity: Protects against evaporation, drying, and contamination.
- Compatibility with Immersion Oil: Glass cover slips are essential when using oil immersion lenses for maximum resolution.
- Preservation of Microscopes: Prevents contact between samples and expensive microscope optics, reducing cleaning and maintenance needs.
Cover Slip vs. Glass Slide: What’s the Difference?
While both are used together in microscopy, their roles are distinct:
- Glass Slide: The base platform on which the specimen is placed.
- Cover slip: A slender piece of glass or plastic positioned over the specimen to flatten it, provide protection, and improve microscopic observation.
Both components work in tandem to produce clear, undistorted images and maintain sample integrity.
Precautions and Safety Tips for Handling Cover Slips
Despite their small size, cover glasses must be handled carefully to avoid damage or injury:
- Handle cover slips by the edges to prevent smudges.
- Always check for cracks or chips before use.
- Store cover slips in a dry, clean container to prevent breakage.
- Dispose of broken cover slips in designated sharps containers.
- Exercise caution when applying cover glasses to prevent them from snapping under pressure.
Cleaning and Reusing Cover Slips
In some cases, glass cover slips can be cleaned and reused, particularly in teaching or non-clinical settings:
- Soak used cover slips in laboratory-grade detergent or alcohol to remove stains and residues.
- Rinse thoroughly with distilled water.
- Dry with lens paper or allow to air dry completely before reuse.
- Inspect for scratches or damage before reuse to ensure optical quality.
Conclusion
The cover slip may appear insignificant, but it is a critical tool in laboratory microscopy, providing essential protection for both specimens and microscope lenses while enhancing image clarity. From biological research to medical diagnostics and educational settings, understanding the types, applications, and proper handling of cover slips ensures accurate, high-quality observations and the longevity of laboratory equipment.
