Bunsen Burner

In scientific laboratories around the world, precise heating is a fundamental requirement for experiments, testing, and research. One of the most iconic and reliable tools that fulfills this purpose is the Bunsen burner. Despite the rise of modern heating equipment, the Bunsen burner remains a staple in laboratories, offering a controlled and efficient flame for various applications.

This detailed guide offers an in-depth overview of the Bunsen burner, covering its structure, operating mechanism, various types, applications, Lab safety precautions, and benefits.

Introduction to Bunsen Burner

A Bunsen burner is a laboratory heating tool that creates a single open gas flame used for heating, sterilization, and combustion. It works by mixing gas, usually methane, natural gas, or liquefied petroleum gas (LPG), with air to produce a clean, adjustable flame.

The Bunsen burner, named after the German chemist Robert Bunsen, revolutionized laboratory heating by providing a safe, controllable flame that could be adjusted for different experimental requirements.

Structure and Design of a Bunsen Burner

The Bunsen burner is designed with simplicity and efficiency in mind. Its key components include:

• Base: A heavy, flat platform that provides stability to the burner.
• Gas Inlet: The port where the gas supply is connected, usually via a rubber hose.
• Barrel: The vertical metal tube where the gas and air mix before combustion.
• Air Vents (Collar): Adjustable openings at the bottom of the barrel that control the amount of air mixed with the gas.
• Gas Control Valve: Regulates the gas flow entering the burner.
• Nozzle: The top of the barrel where the flame is produced.

This design ensures that users can control both the gas flow and the air intake, allowing for precise flame adjustment.

Working Principle of a Bunsen Burner

The operation of a Bunsen burner is based on the principle of gas-air mixing to produce different types of flames:

1. Gas is supplied through the gas inlet and flows into the burner.
2. The air vents at the bottom allow air to mix with the gas inside the barrel.
3. When the gas-air mixture exits the nozzle and is ignited, it produces a flame.

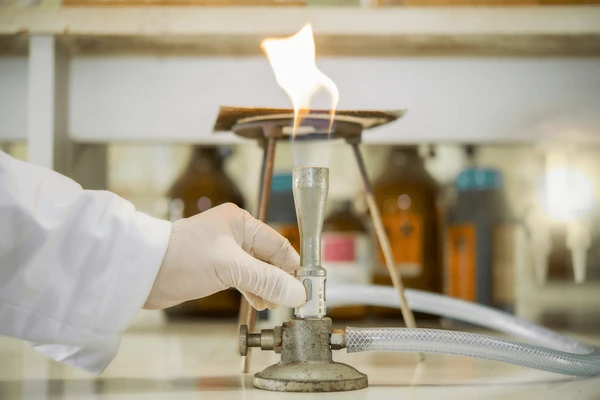

4. Adjusting the air vents and gas control valve modifies the flame’s characteristics.

By controlling these settings, users can switch between a luminous (yellow) flame and a non-luminous (blue) flame, each serving different purposes.

Different Types of Flames Generated by a Bunsen Burner

The Bunsen burner can produce different types of flames depending on the air-to-gas ratio:

1. Luminous Flame (Yellow Flame)

• Produced when the air vents are closed or only partially open.
• Incomplete combustion occurs, resulting in a cooler, yellow flame.
• Sooty and less hot than a non-luminous flame.
• Ideal for tasks where visibility of the flame is important, but not used for heating.

2. Non-Luminous Flame (Blue Flame)

• Produced when the air vents are fully or partially open, allowing for complete combustion.
• Clean, blue flame that is hotter and preferred for heating experiments.
• Offers greater efficiency and minimal soot production.
• Commonly used in laboratory procedures requiring consistent, high temperatures.

Uses of a Bunsen Burner

The Bunsen burner is a versatile tool widely used across various scientific disciplines:

1. Heating Substances

• Boiling liquids in beakers or flasks.
• Heating solids in crucibles for chemical reactions.

2. Sterilization

• Flaming inoculating loops and other laboratory tools for sterilization.
• Maintaining aseptic conditions during microbiological work.

3. Combustion Experiments

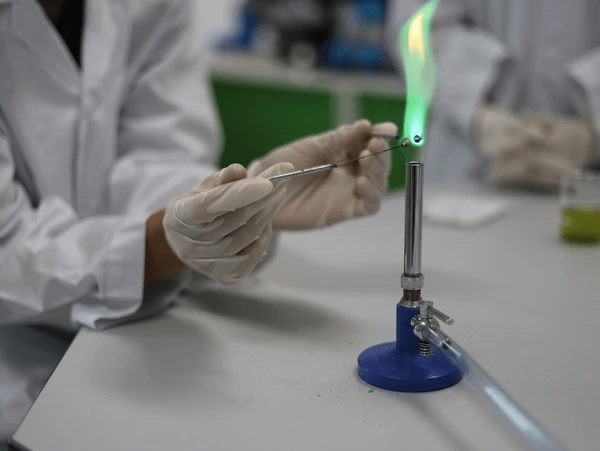

• Used for flame tests to identify metal ions based on flame color.
• Conducting combustion experiments in chemistry classes.

4. Evaporation

• Heating evaporating dishes to remove solvents and concentrate solutions.

Advantages of Using a Bunsen Burner

The Bunsen burner continues to be a preferred laboratory heating tool due to its many advantages:

• Precise Flame Control: Adjustable air vents and gas flow provide control over flame temperature and intensity.
• Clean Combustion: When operated correctly, it produces a smokeless, soot-free flame.
• Quick Heating: Provides immediate and efficient heat for a variety of experiments.
• Cost-Effective: Simple design with low maintenance requirements.
• Versatile Applications: Suitable for heating, sterilization, and demonstration purposes.

Safety Tips for Using a Bunsen Burner

While the Bunsen burner is generally safe when used properly, laboratory safety protocols must always be followed:

• Check for gas leaks before lighting the burner.
• Always ignite the burner with the air vents closed to produce a visible yellow flame initially.
• Adjust to a blue flame after ignition for heating purposes.
• Never leave an open flame unattended.
• Keep flammable materials away from the burner.
• Use appropriate heat-resistant equipment like tripod stands and wire gauze.
• Turn off the gas supply immediately after use.

Common Laboratory Accessories Used with a Bunsen Burner

To enhance the functionality and safety of a Bunsen burner, it is often used alongside:

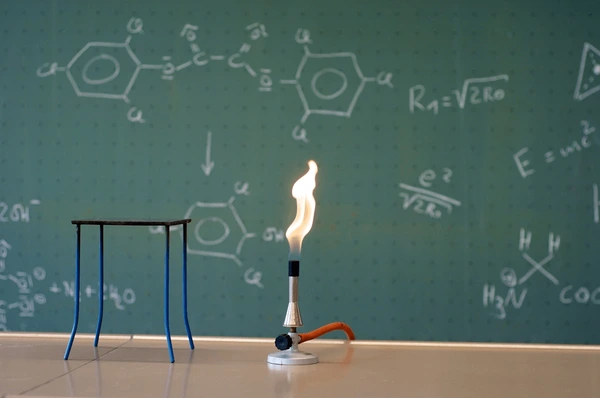

• Tripod Stands: Provide stable support for glassware placed over the flame.
• Wire Gauze: Distributes heat evenly and prevents glassware from breaking.
• Crucibles and Crucible Tongs: Used for high-temperature heating of solids.
• Evaporating Dishes: Ideal for concentrating solutions by evaporation.
• Test Tube Holders: Allow safe heating of test tubes.

Applications of the Bunsen Burner in Various Fields

The Bunsen burner is widely used in:

• Educational Institutions: Essential for chemistry and biology laboratory classes.
• Research Laboratories: Used for sample preparation, sterilization, and heating experiments.
• Pharmaceutical Industry: Applied in quality control labs for heating and testing.
• Microbiology Labs: Ensures aseptic techniques during microbial culture work.

Conclusion

The Bunsen burner remains a cornerstone of laboratory equipment due to its simplicity, efficiency, and versatility. Its ability to provide controlled, high-temperature heating makes it essential for a wide range of scientific experiments and educational demonstrations. With proper setup and adherence to safety measures, the Bunsen burner continues to be an indispensable tool that fuels scientific discovery and innovation.
